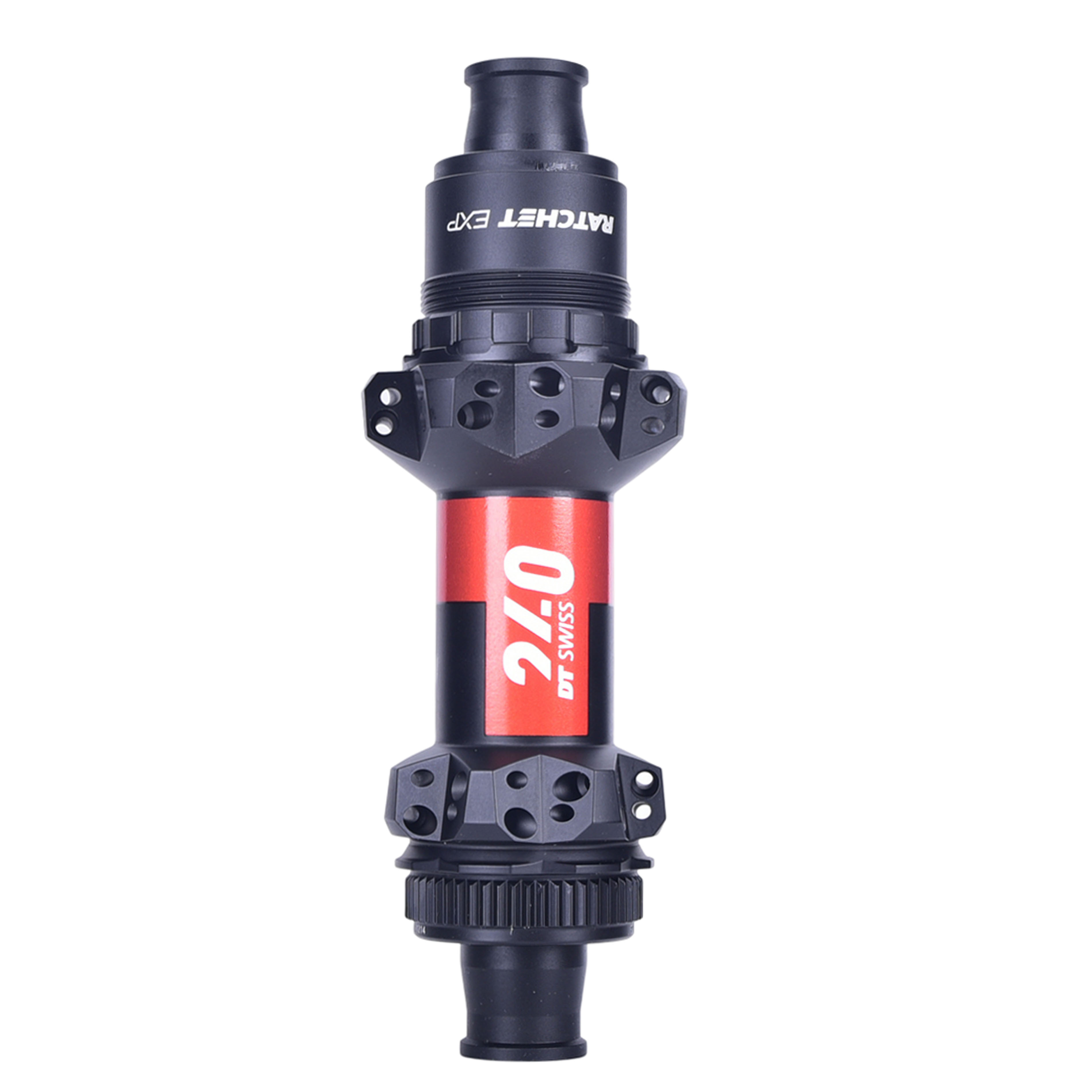

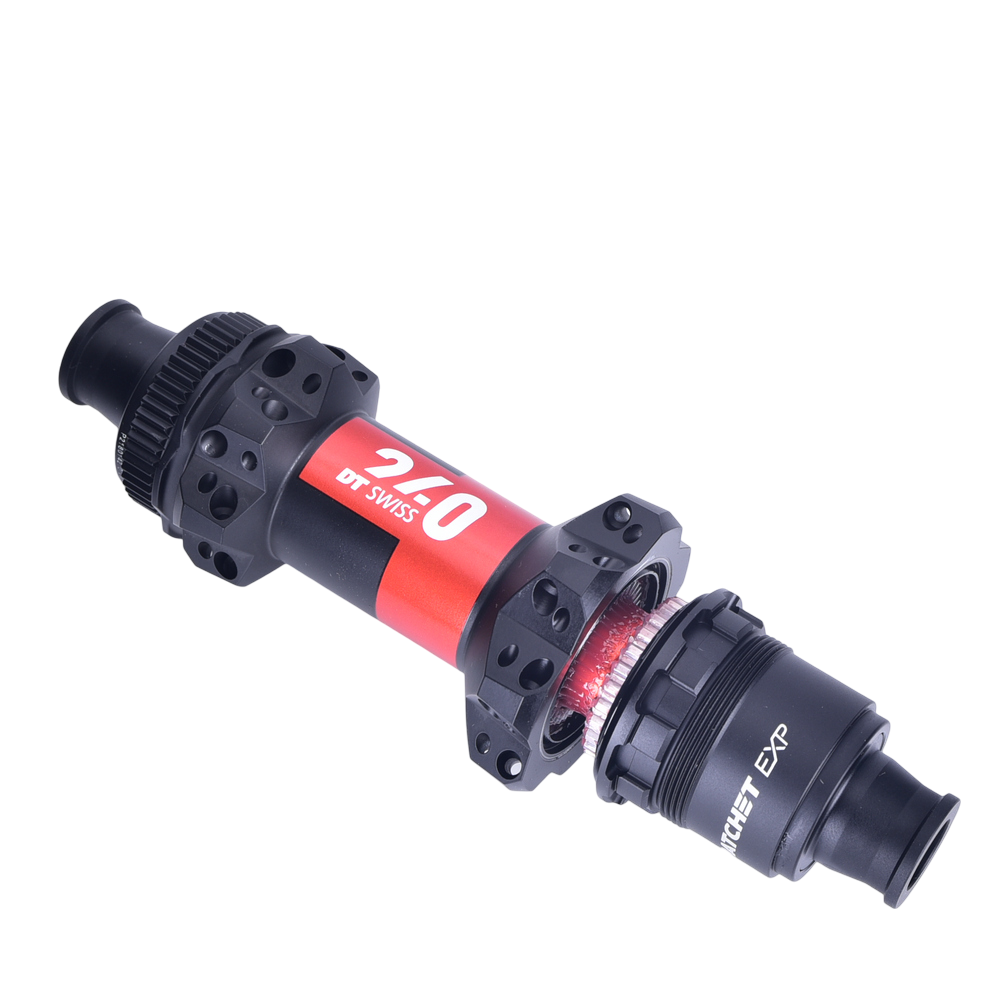

DT Swiss Original 240 MTB Bike Straight Pull Hubs 28H For MTB Hub BOOST HG/XD/MS Front 110X15 Rear 148X12 Mountain Bike hub

NEW 2020 DT SWISS 240 MTB HUBS

Please check with the customer service before the order to specify the specifications of the hub: including,

1. Model: 240

2. Type: Mountain

3. Axis width: front 110, rear 148mm

4. Shaft diameter: the first 15, the last 12mm

5. Number of spoke holes: 28

6. Pull ear: straight pull

7. Kentucky: HG:SHIMANO SRAM 8-11S, XD:SRAM 11/12S, MS:SHIMANO 12S

8. Brake mounting surface: Six nailssix-nail locking disc brake/central locking disc brake

DT SWISS RATCHET planetary gear system technical description :

1. Press-fit side cover: The side cover that can be disassembled by hand gives the convenience of quick maintenance and specification conversion. + /-0.0XX mm press-fit tolerance.

2. Bearing: High-end cassette bearing, single contact surface seal ring achieves extremely low running resistance. 2080 N Single bearing load capacity.

3. Gear ring: It bears the inner Palin and transmits the torque to the hub shell. 450 NM test torque passed.

4. Lightweight alloy mandrel: optimize the dynamic load of the hub. After 13 times of wheel life cycle test.

5. Spring: Tested by the product life cycle of 13 times wheel set.

6. Planetary gear: the best system for transmitting torque with the lightest weight.

18 T / 20° bite angle | 36 T / 10° bite angle | 54 T / 6.6° bite angle | available options

7, alloy tower base: lightweight and anode surface treatment. In order to reduce the running resistance, the oil seal contact surface adopts high precision and extremely smooth surface treatment. +/- 0.0XX MM oil seal seat accuracy.
