Built the bike and went for a ride, so far so good! The bottom bracket and rear triangle area feel really stiff,

but the rest of the bike is less stiff laterally so it is not uncomfortable. not the lightest, but decent for an aero bike.

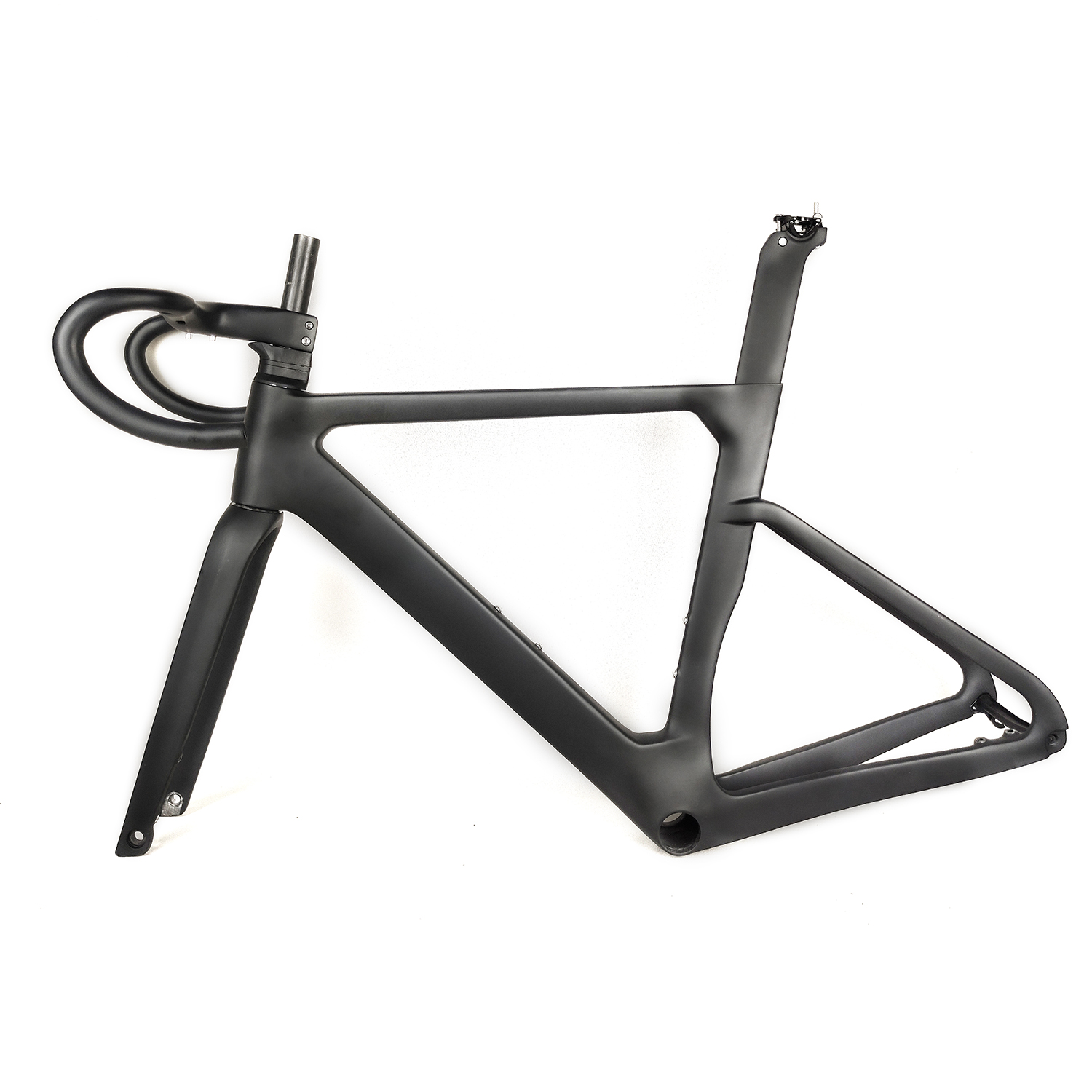

Type:  Aero Thru Axle Disc Brake Road Frame

Material: T1000 Full Carbon Fiber

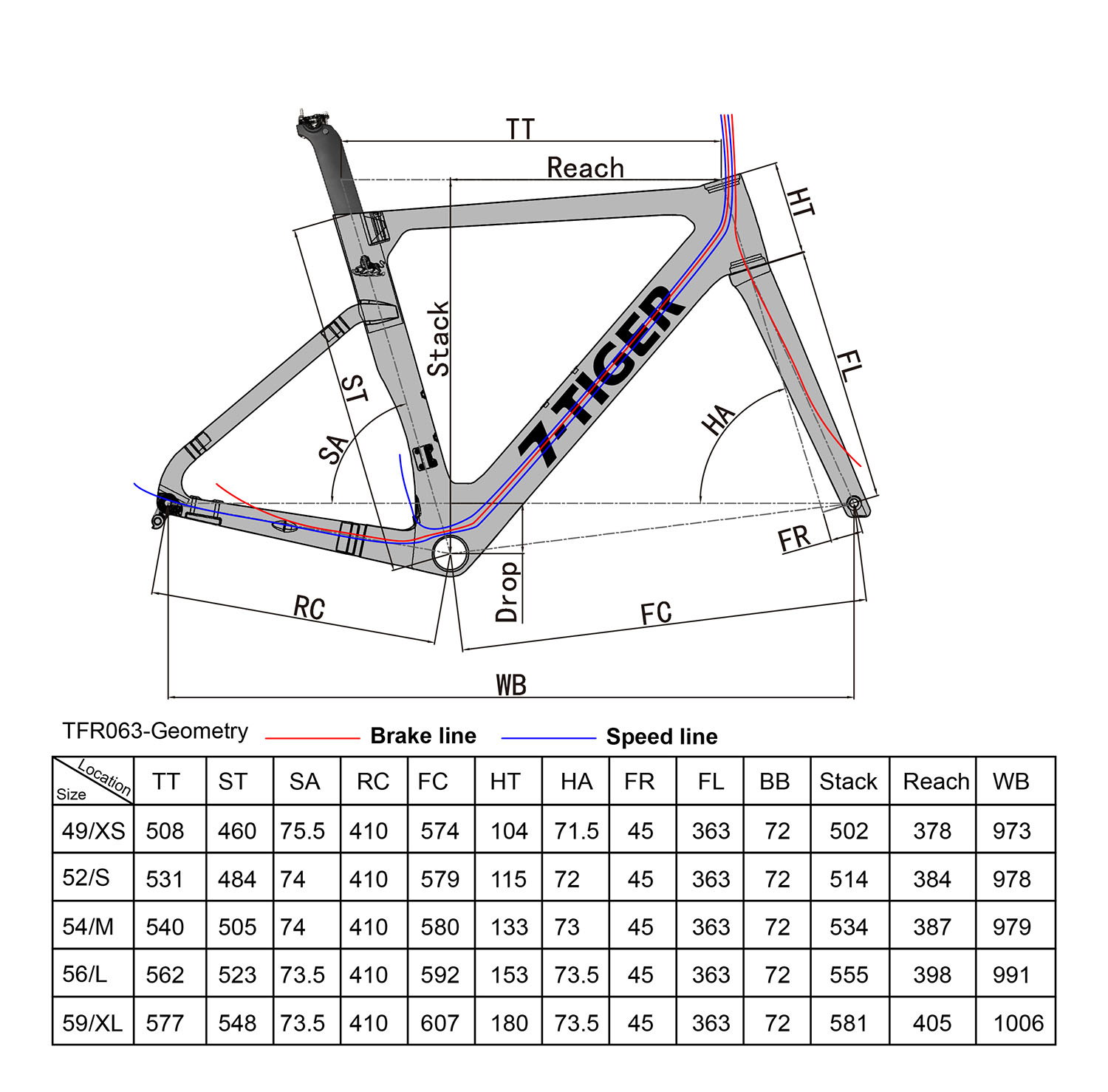

Model:  TFR063

Bottom Bracket: BB386

Rear Spacing:  142*12mm Thru Axle

Front Spacing: 100*12mm Thru Axle

Brake System:  Flat Mount Disc Brake

Derailleur System:  Both for Mechanical Derailleur and Di2

Cable Routing: All Internal Cable

Frame Size: 49/52/54/56/59cm

Headset Size: 1-1/8"-1-1/8"( 51.8mm)

Weave: UD Black

Finish:  Matte/Glossy

Handlebar Size:  380/400/420/440*90/100/110/120mm, please choose

Frame Weight:  1220+/-50g(Size 54cm)

Fork Weight:   400+/-15g

Seatpost Weight:  235+/-10g

Max Tire Size: 700*28C

Seat Post: Dedicated Aero Seatpost

Warranty: 2 Years

Customs Tax:   Buyers pay the tariff

Standard: EN Standard

Item include :  Frame +Fork + Seatpost + Handlebar + Headset + Front Rear Axle

 T800 Full Carbon Disc Brake Road Bike Frame With Handlebar Aero Racing Bicycle Carbon Frameset 100/142mm Thru Axle Thru-Axle Carbon Disc Brake Road Bike Frame With Integrated Handlebar

 T800 Full Carbon Disc Brake Road Bike Frame With Handlebar Aero Racing Bicycle Carbon Frameset 100/142mm Thru Axle Thru-Axle Carbon Disc Brake Road Bike Frame With Integrated Handlebar

 T800 Full Carbon Disc Brake Road Bike Frame With Handlebar Aero Racing Bicycle Carbon Frameset 100/142mm Thru Axle Thru-Axle Carbon Disc Brake Road Bike Frame With Integrated Handlebar

 T800 Full Carbon Disc Brake Road Bike Frame With Handlebar Aero Racing Bicycle Carbon Frameset 100/142mm Thru Axle Thru-Axle Carbon Disc Brake Road Bike Frame With Integrated Handlebar
